Tillet Chain Guard Fitting Kit
Tillett long bracket chainguard fitting kit for Rotax & X30/OK versions.
The Tillett long bracket mounting kits are made to make the guards solid and adjustable fore and aft. The longer brackets fix high up on the guard, keeping it more rigidly located, also helping move the fixings above the exhausts such as the one used on the Rotax Max.
This makes removal of the M6 fixing nuts much easier. The long bracket fitting kit is suited to both the Rotax and X30/OK IAME guard types.

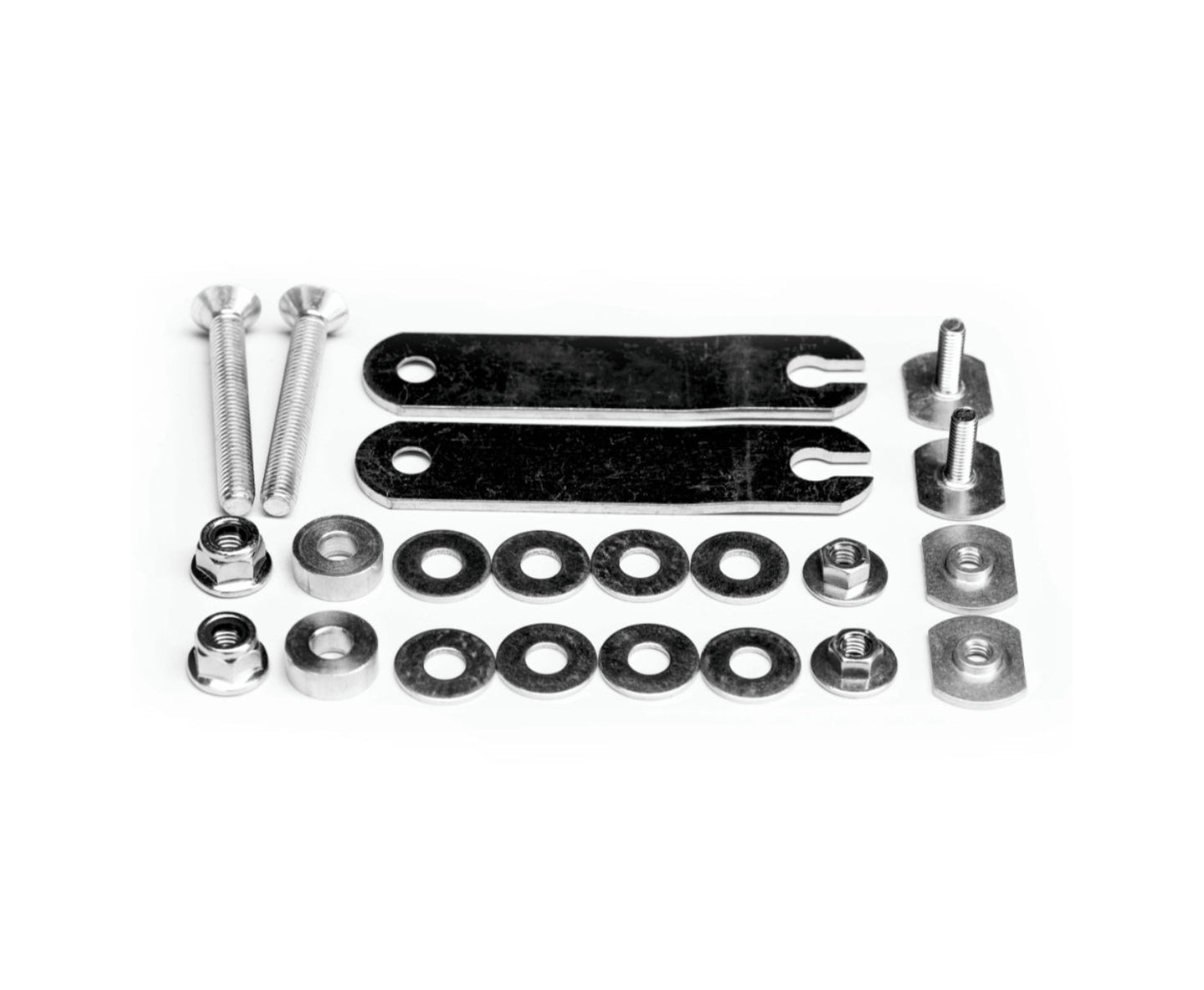

LONG BRACKET GUARD FITTING KIT CONTAINS:
- 2x Long chainguard brackets
- 2x M6 nuts with captive spung washer
- 2x Guard retention M6 T bolts
- 2x Guard retention M6 aluminium bushes
- 2x M8 x 50mm countersunk socket screws
- 8x M8 steel washers 15 mm diameter
- 2x 7 mm thick M8 aluminium spacers
- 2x M8 Nyloc nuts
KEY FEATURES
- Long bracket kit can be used with Tillet chainguards for Rotax or X30/OK.
- Approximate weight 248g.
- Designed and manufactured in the UK.
